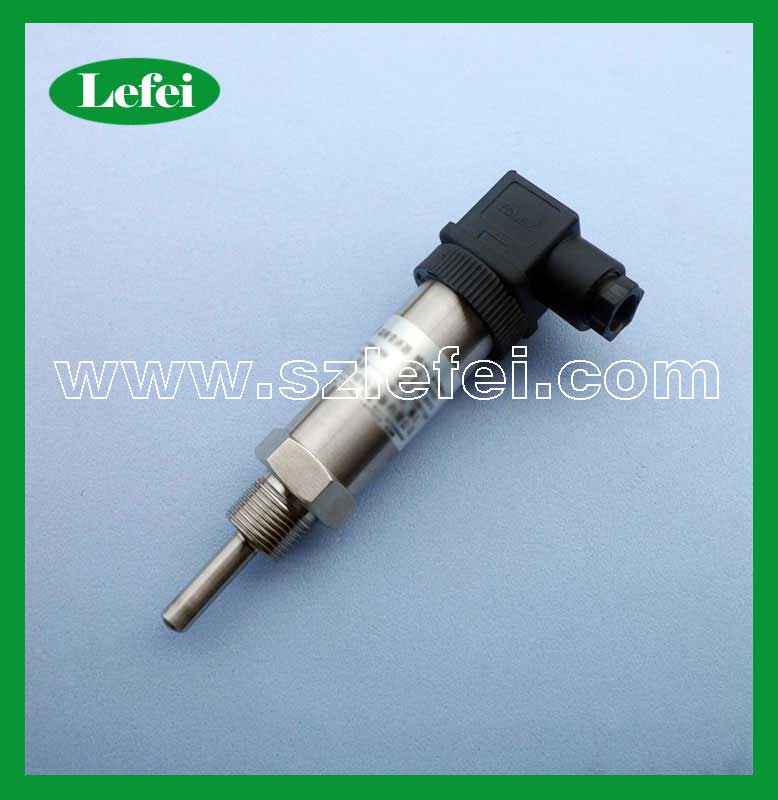

PT100 temperature transmitter
PT100 temperature transmitter exterior stainless steel housing package, compact size, waterproof
and shockproof excellent performance, safety and reliability, thermal resistance signal transmission
module is converted to a standard current signal output, the temperature transmitter and equipped with on site display, temperature range and output signal linear relationship, they realize the remote control, the
measurement accuracy is relatively high, and are widely used in industrial temperature measurement in the
field of electric power, metallurgy, medicine, food and other process control.
Technical parameters
Measuring range :0-100 ° C
Accuracy : 0.5% FS, 1.0% FS
Output signal:4-20mA
Supply voltage: +24 VDC
Process connection: G1 / 4, G1 / 2, M14X1.5, M20X1.5 (can be customized)
Electrical connection: Hirschmann connector
Probe Length: 30mm, 50mm, 100mm (can be customized) |
