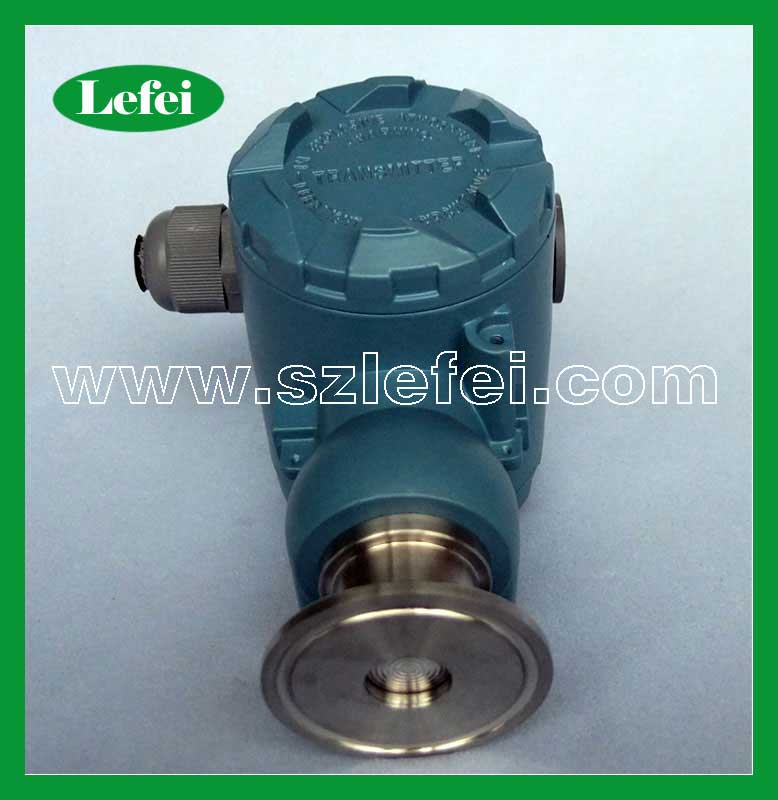

LPT2800 anti-explosion pressure transmitter
Technical Parameters
1.Measuring Range: -0.1-300MPa
2.Accuracy:0.25%FS,0.5%FS,1.0%FS
3.Output signal:4-20mA, 0/1-5/10V
4.Supply voltage:12VDC,24VDC 5.Thread fitting :M20X1.5,G1/2,1/2NPT,1\4NPT( can be customized )
6.Electrical connection: Aviation connector directly connector connector
7.Compensate for temperature:0-85 °C
8.Operating temperature: -20-300°C
9.Safety overload capacity: 150%
10.Load capacity: Current ≤ 500Ω
11.Extreme overload capacity: 200% 12.Temperature drift: 0.02% FS/ °C
13.Protection rank:IP65
14.Explosion proof grade :Intrinsically Safe ExiaⅡC T6, Flameproof Exd II C T5
Connection
Current signal output: ( Red/1#: Power V+; Black/2#:output OUT) ;
Voltage signal output: ( Red 1#:Power V+; Blue 3#:Signal Output; Black 2#:GND ) |
