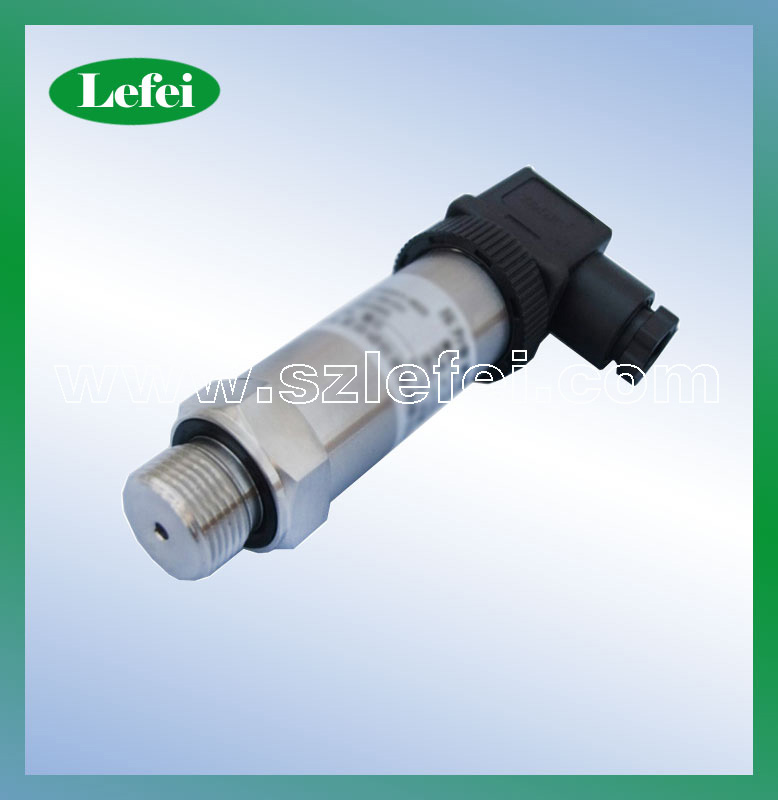

LPT2300 Series Pressure Transmitter

Technical Parameters

1.Measuring Range: -0.1-300MPa

2.Accuracy:0.25%FS,0.5%FS,1.0%FS

3.Output signal:4-20mA, 0/1-5/10V

4.Supply voltage:12VDC,24VDC
5.Thread fitting :M20X1.5,G1/2,1/2NPT,1\4NPT( can be customized )

6.Electrical connection: Aviation connector directly connector Hirschmann connector

7.Compensate for temperature:0-85 °C

8.Operating temperature: -40-100°C,-20-300°C

9.Safety overload capacity: 150%

10.Load capacity: Current ≤ 500Ω

11.Extreme overload capacity: 200%
12.Temperature drift: 0.02% FS/ °C

13.Protection rank:IP65

Connection

 Current signal output: ( Red/1#: Power V+; Black/2#:output OUT) ;

 Voltage signal output: ( Red 1#:Power V+; Blue 3#:Signal Output; Black 2#:GND )
