Product introduction
： |
||
|
|

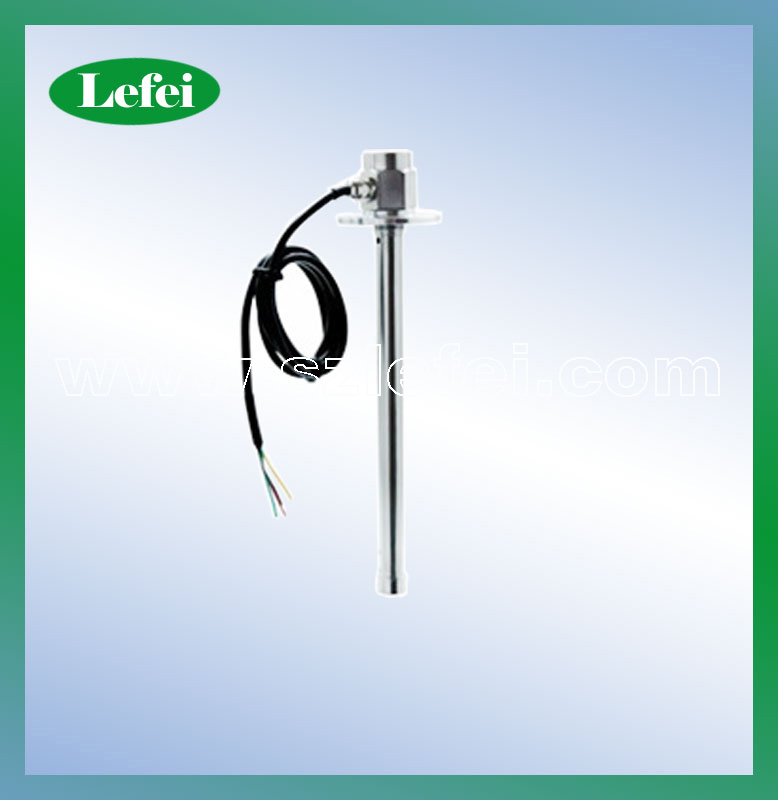

CR series capacitive fuel level sensor CR series digital oil level sensor base on RF capacitive gauge principle which adopt tomography technology dynamicly analyze various parameters of sensor in the medium, compensate precisely and automatically The output signals appear to be linearity changed according to the liquid level changing. there are no any movable or flexible parts in the whole machine, and have the characteristic of impact resistance and easy installation. It can be installed in various situations to accurately measure the level of petrol, diesel oil, hydraulic oil and other kinds of weak corrosive liquid. Performance： 1.Detection range: 15~1400mm 2.Accuracy: level 0.5 3.Resolution: 0.01mm 4.Pressure range: -0.1MPa~0.1MPa 5.Probe temperature: -100~150℃ 6.Probe diameter:Φ16 7.Ambient temperature: -40~70℃ 8.Output signal:4~20mA,0~5V,0~10V,RS485 communication,RS232 communication 9.Supply voltage: DC12~40V(typical value 24VDC) 10.Fixation:Screw mounting M20×1.5 or Flange mounting Special specifications can be customized 11.Explosion proof grade :Intrinsically Safe ExiaⅡC T6, Flameproof Exd II C T5 12.Accuracy rank: Measuring range is 300mm or less; accuracy level is 1.5; Measuring range 300mm to 700mm; accuracy level is 1.0; Measurement range 700mm to 1000mm; accuracy level is 0.5; Note: effective range accuracy rank for the above accuracy or absolute error 3mm (take maximum). |
|
