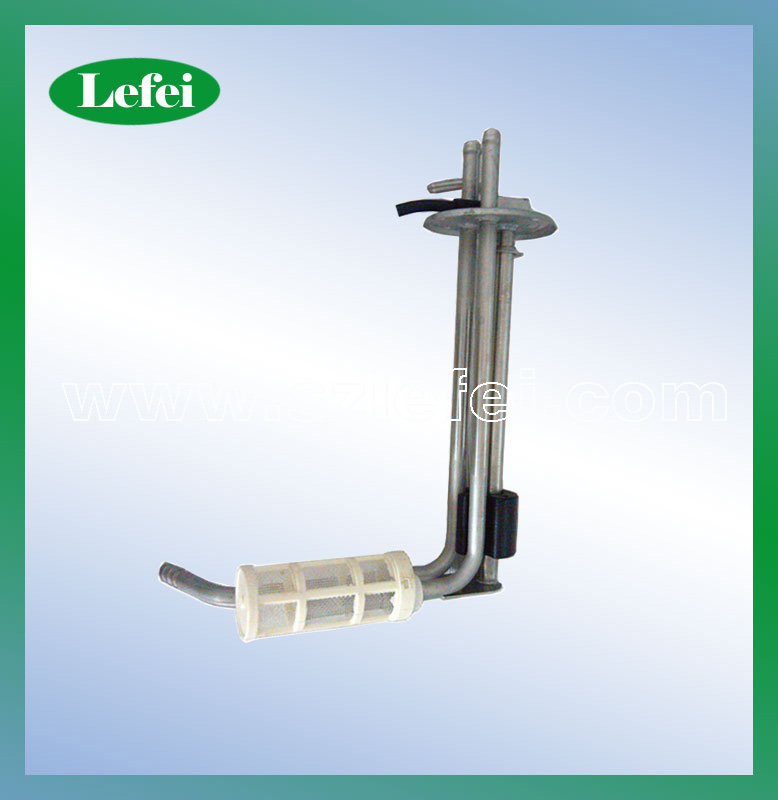

LFTN series fuel tank lever sensor
Description:
1.Material: The main body is made of stainless steel.
2.Fitting: The fitting of suction, return pipe have several kinds for choice,such as bulge fitting, thread fitting and SAE fitting. The fittings are parallel in the horizontal direction.
3.Length Range: 150~700mm
4.Fixation: Normally, we use the bayonet, standard 5 holes or standard 6 holes for fixation. Also,the fixation way can be customized.
5.Gasket: The NBR gasket of 4mm thickness with matched screws is used for the flange fixation way. If the sensor is used in the gas tank,we suggest using the FPM gasket.
Features:
1. Applying the principle of magnetic field to control the reed on-off switch, featuring long using life,anti-vibration, anti-explosion, etc.
2. Rated Power: 125mW
3. Rated Current for alarm switch: 500mA
4. Wire: PVC material (PA corrugated pipe cover is optional)
5. Connector: Brand Delphi, Tyco, others is available according to customer’s requirement.
6. Output Signal: Resistance control signal 0~190Ω,240~33Ω, or customize as required.
7. Precision Range: 10~40mm
8. Operating Temperature: -40°C~+85°C
9. Protection Range: IP67
